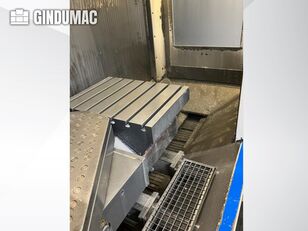

Huron EX-C machining centre | Image 5 - Machineryline
Huron EX-C machining centre | Image 6 - Machineryline

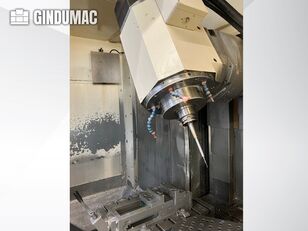

Huron EX-C machining centre | Image 7 - Machineryline
Huron EX-C machining centre | Image 8 - Machineryline
Huron EX-C machining centre | Image 9 - Machineryline
Huron EX-C machining centre | Image 10 - Machineryline
Huron EX-C machining centre | Image 11 - Machineryline
Interested in the ad?
1/11
PDF
Price:
on request
Ask for price
Notify me when price changes
Contact the seller
Brand: Huron
Model: EX-C
Year of manufacture: 1999
Running hours: 52,732 m/h
Net weight: 17,500 kg
Location: Germany Kaiserslautern6808 km to "United States/Columbus"
Seller stock ID: DE-MIL-HUR-1999-00001
Placed on: yesterday
Description
X-axis travel: 1,600 mm
Y-axis travel: 800 mm
Z-axis travel: 600 mm
Axles
Number of axles: 5
Additional services

More details — Huron EX-C machining centre

English
This 5-axis Huron EX-C was manufactured in 1999. It features a clamping surface of 2000 mm x 700 mm and a maximum table load capacity of 1200 kg. The machine offers impressive X-axis travel of 1600 mm, Y-axis travel of 800 mm, and Z-axis travel of 600 mm. If you are looking to get high-quality machining capabilities, consider the Huron EX-C universal machining centre we have for sale. Contact us for further details.
Location: DE
Control Brand: HEIDENHAIN
Control Model: TNC 430
Table Load: 1200 kg
Spindle Taper: HSK-A 63
Work Feeds: 1-30000 mm/min
Rapid Feed: 30000 mm/min
Total Installed Power: 60 kW
Short Circuit Power: 5.5 kW
Electrical Supply: 3 x 400 V
Maximum Power: 60 kW
Cable Cross Section: 35 mm²
Network Type: TN Schema
Coolant Tank: Included
Overhead Chip Conveyor: Included
* 2025: Y-axis feed spindle with bearings and mounting parts replaced
* 2024: X-Y axis roller shoes replaced, X-axis linear guide replaced, geometry realigned, Z-axis roller shoes, Y-axis roller shoes
Maintenance/Repair History
