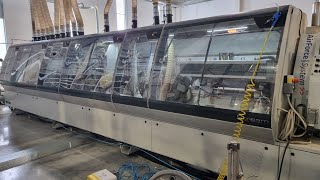

Biesse Stream B 10.5 edgebander
Zona Industriale scerne7619 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+39 320 307...
Show
+39 320 307 4373
50 Hz
Belgium, Heule (Kortrijk)
50 Hz
Belgium, Heule (Kortrijk)
Brand: Biesse
Model: Stream B 10.5, CE
Year of construction: 2018
Conditions: Excellent
Delivery: on demand
DESCRIPTION
Single automatic edging machine for application of PVC, ABS, melamine, veneer and solid wood edges in strips or rolls. Sturdy machine, ideal for industrial or artisan use and for who use edgebanding machines for multiple applications, involving the use of a wide range of different types of panel and edging material. Robust, safe and reliable panel transport system for optimum holding of panels of all dimensions. Extra-large industrial chain with large, individually interchangeable pods.
INVISIBLE EDGEBANDING
No joints and no glue line, in perfect harmony with the panel. Air Force System based on the physical principle of convection. By using a compressed hot air system, the edge bonds perfectly with the panel guaranteeing resistance to water and heat and an excellent long lasting quality finish.
TECHNICAL FEATURES
Panel thickness: 10-60 mm.
Panel width: 100-3200 mm.
Panel length: 150-3200 mm.
Thickness of edge-banding material in rolls mm.: 0,3-3 mm.
Thickness of edge-banding material in strips: max 20 mm.
Edge eight: min 15-max 65 mm.
Panel overhang: 35 mm.
Feed speed: 10-25 m/min.
Working line height: 950 mm.
Total power installed: 35 KW
Pneumatic connection bar: 07-10
Suction flow rate: m/sec 30
Machine Weight: 7.500 KG
Overall dimensions: 15.500 x 4.700+1500 mm. (Stream B 10.5: 11.640 mm.)
Documents: operation and maintenance manual, spare parts catalogue, electrical sheet, software manual, CE declaration of conformity
WORKING UNITS
19" Control panel with SINTRA interface
Working units control and automatic start of motors
Edge magazine with 6 positions
IR lamp
Anti-adhesive and clean units: 3 positions
Pre-milling unit
Pre-melting system for polyurethanic glues: nr 2 Nordson
AIR FORCE SYSTEM hot air
Glue tank with quick release: nr 2 Nordson
Linear edge trimming unit IT 90 P
Tilting top and bottom chamfering unit
2 motor corner-rounding unit with Brushless movement and tool change magazine
CN Edge scraper unit
CN Glue scraper unit
Spindle moulder unit/grooving unit: nr 2
Brush unit
Air blower unit
Belt presser
Highly efficient chip suction system on all the working units
Safety cabins with sound proofing
Interior lighiting
PANEL TURNER SYSTEM
Marca: Biesse
Modello: Stream B 10.5, CE
Anno di costruzione: 2018
Condizioni: Eccellente
Disponibilità: Da definire
DESCRIZIONE
Macchina Bordatrice automatica per l'applicazione di bordi in PVC, ABS, melaminico, impiallacciatura, masselli, strisce o rotoli. robusta ideale per l'industria e l'artigianato, adatto alle molteplici applicazioni che prevedono l'utilizzo delle più diverse tipologie di pannelli e bordi. Sistema di trasporto pannelli robusto, sicuro e affidabile per la tenuta ottimale di pannelli di ogni dimensione. Catena industriale di grande dimensione e grandi pattini singolarmente intercambiabili.
Gruppo AirForceSystem: sfrutta il principio fisico della convezione grazie ad un sistema di aria calda compressa il bordo si salda perfettamente al pannello garantendo eccellente qualità di finitura estetica che dura nel tempo.
CARATTERISTICHE TECNICHE
Spessore pannello: 10-60 mm.
Larghezza pannello: 100-3200 mm.
Lunghezza pannello: 150-3200 mm.
Spessore bordo in rotolo: 0,3-3 mm.
Spessore bordo in strisce: max 20 mm.
Altezza bordo: min 15-max 65 mm.
Sporgenza pannello: 35 mm.
Velocità avanzamento: 10-25 m/min.
Altezza linea di lavoro: 950 mm.
Potenza totale installata: kw. 35
Collegamento pneumatico: bar 07-10
Velocità aria aspirazione: m/sec 30
Peso solo Bordatrice: kg. 7.500
Dimensioni totale impianto: 15.500 x 4.700+1.500 mm. (Solo bordatrice 11.640 mm.)
Documentazione macchina: manuale uso e manutenzione, manuale software, catalogo ricambi, schema elettrico, dichiarazione di conformità CE.
GRUPPI OPERATORI
Pannello di controllo da 19" con interfaccia SINTRA. Supervisore Datalogic, BarCode
Piano a velo d’aria per appoggio e introduzione pezzi in macchina
Magazzino portarotoli a 6 posizioni
Guida in entrata di dimensione maggiorata
Lampada infrarossi
Gruppo antiadesivizzante+pulitore su 3 posizioni
Gruppo rettificatore a 2 motori
Nr. 2 Prefusori Noprdson per colle poliuretaniche
Gruppo AirForceSystem ad aria calda per bordi preincollati per saldatura perfetta
Gruppo intestatore lineare IT 90 P
Gruppo Spigolatore inclinabile
Gruppo arrotondatore a 2 motori con movimentazione Brushless e doppio magazzino cambio utensili a 8 posizioni cad.
Gruppo raschiabordi a controllo numerico
Gruppo raschiacolla a controllo numerico
Nr. 2 gruppi fresatori 0°-90° a controllo numerico
Gruppo spazzole
Gruppo Phon
Pressore a cinghia
Sistema di aspirazione trucioli con alta efficienza su tutti i gruppi operatori
Cabina di protezione con rivestimento fonoassorbente
Illuminazione interna
SISTEMA AUTOMATICO DI RITORNO PANNELLI CON PIANO A VELO D’ARIA DA MM. 2500X2000, TAPPETO DI RITORNO, E SISTEMA CON SOLLEVATORE RULLI E CINGHIA
